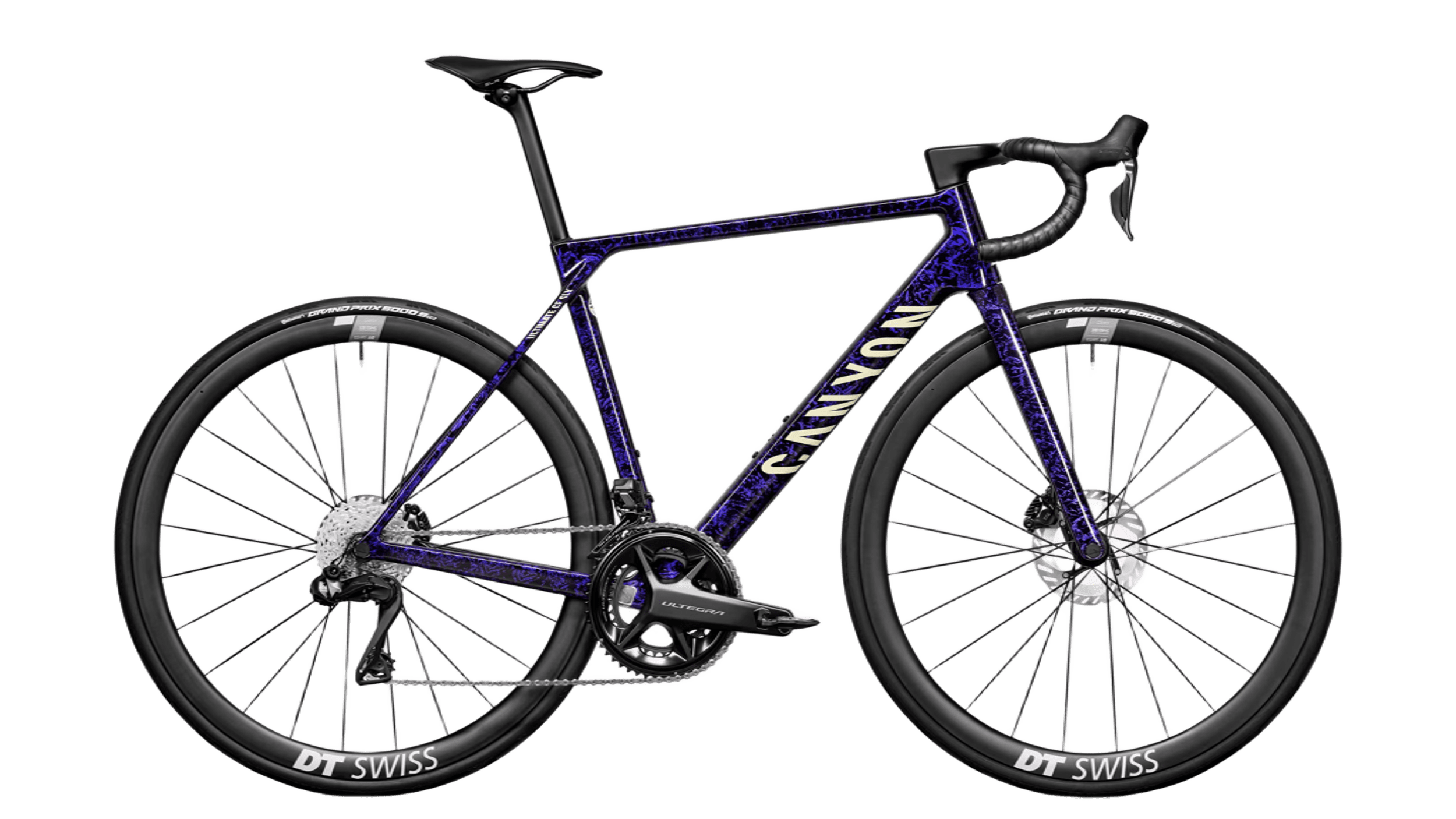

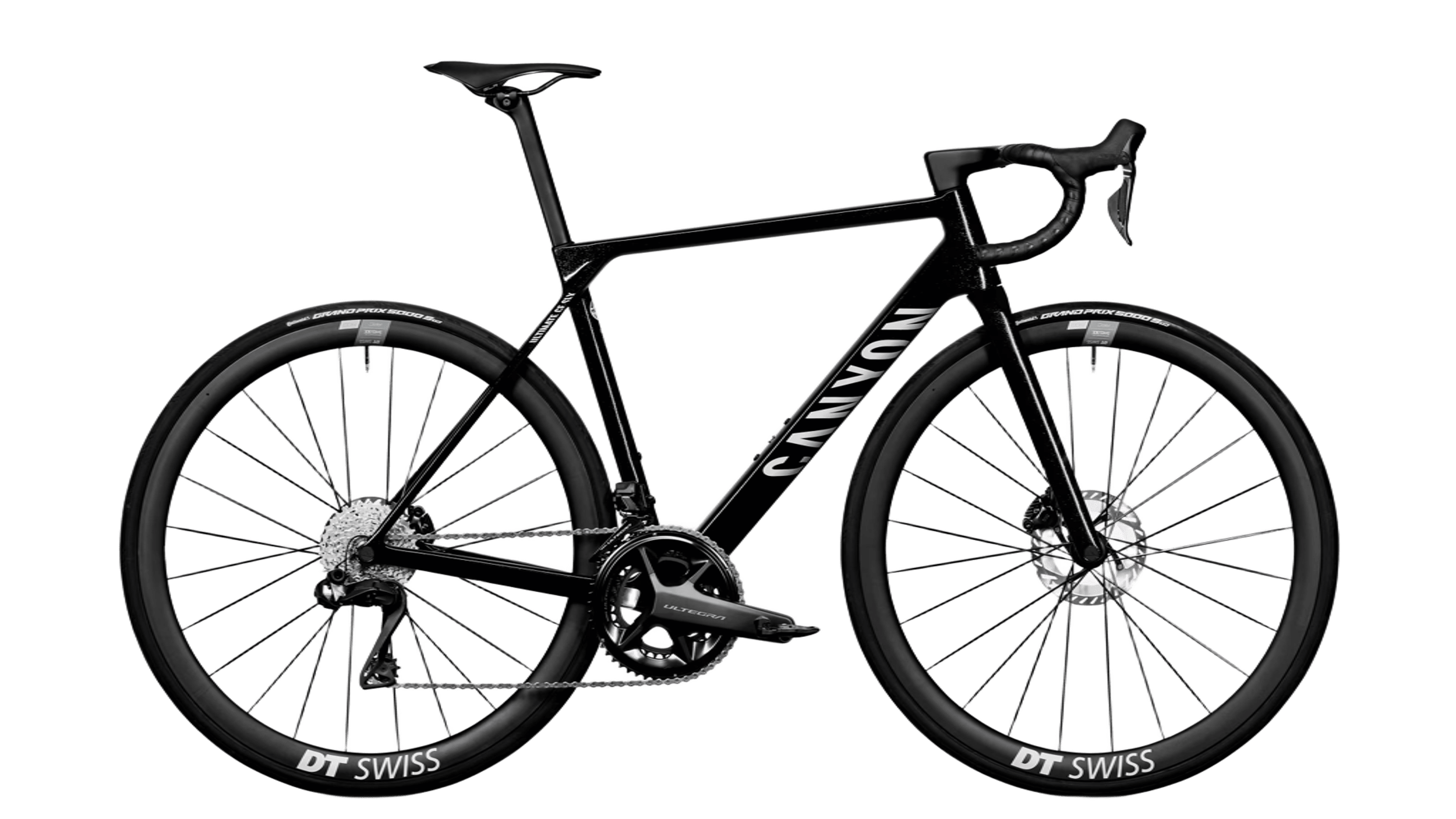

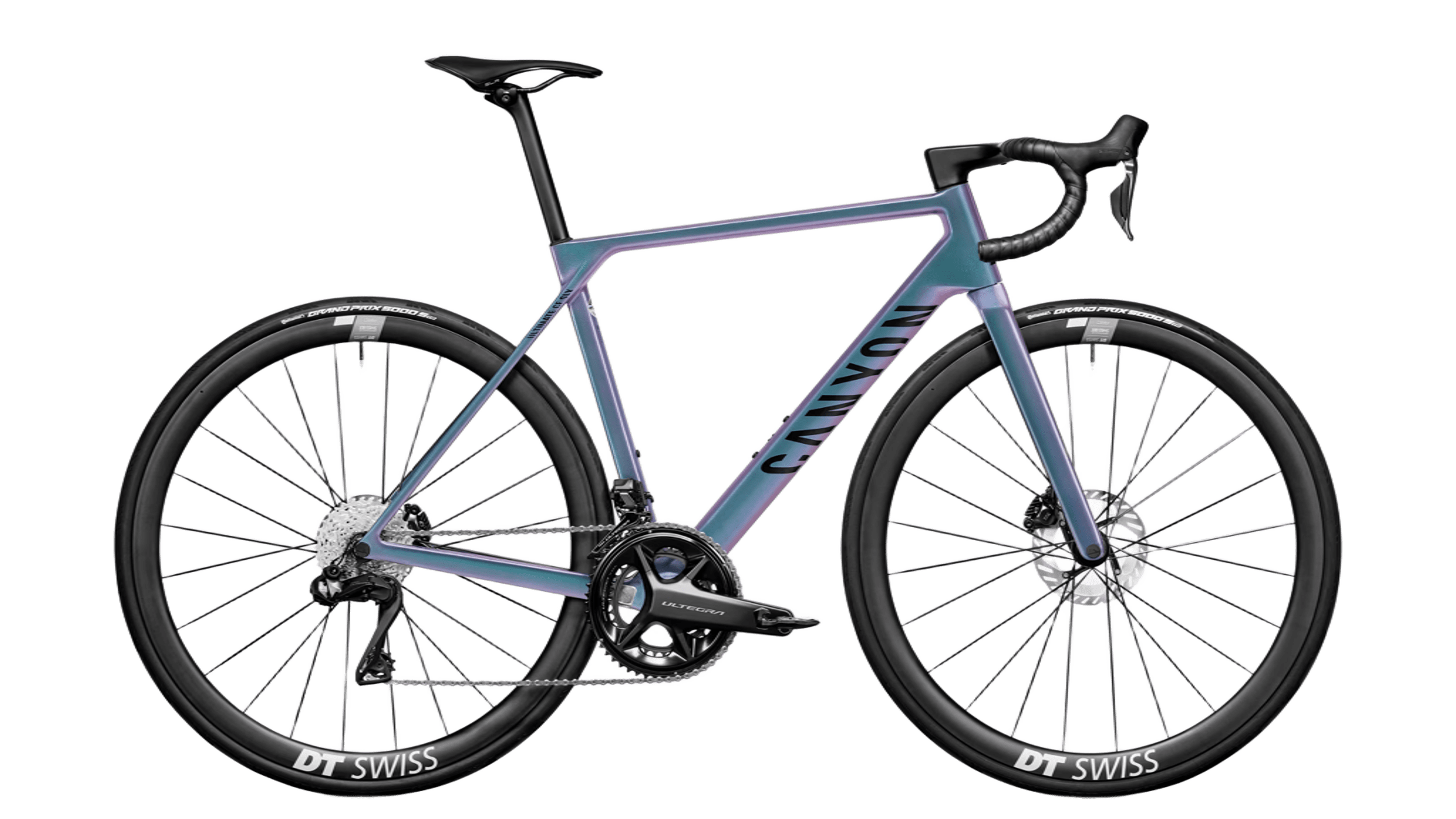

Canyon Ultimate CF SLX – Shimano Ultegra Di2 & Power Meter
The Canyon Ultimate CF SLX delivers pure all-rounder road racing performance. Built on an ultralight carbon frame (940 g) with climbing-focused geometry, this model features electronic Shimano Ultegra Di2 12-speed shifting, an integrated 4iiii Precision power meter, lightweight DT Swiss ARC 1400 Dicut carbon wheels, and tubeless-ready Continental Grand Prix 5000 S TR tires.
Key Specifications & Frameset
| Frame | Canyon Ultimate CF SLX, Carbon (940 g), 12x142mm thru-axle, 32mm tire clearance |
| Fork | Canyon FK0146 CF, Carbon (367 g), 12x100mm thru-axle, 1 1/4″ steerer, 32mm tire clearance |
| Cockpit | CP0048 PACE T-Bar Aero Carbon Cockpit (224 g) with 50mm width & 20mm height adjustment (12 distinct positions) |
| Bar Tape | Canyon Ergospeed Gel (Black) |
Drivetrain & Brakes
| Drivetrain | Shimano Ultegra Di2 FD-R8150, 2×12-Speed Electronic Wireless |
| Shifters / Levers | Shimano Ultegra Di2 R8170 Hydraulic Disc |
| Crankset | Shimano Ultegra FC-R8100 with Integrated 4iiii Precision Power Meter |
| Cassette | Shimano CS-R8101, 11-34, 12-Speed |
| Chain & BB | Shimano XT 12s & Shimano Pressfit BB72 (PF 86.5) |
| Brake Rotors | Shimano Ultegra RT-CL800 Center Lock (160mm Front / 140mm Rear) |
| Battery | Shimano BT-DN300 Di2 Battery |
Wheels & Components
| Front Wheel | DT Swiss ARC 1400 Dicut Carbon, 38mm Depth, 20mm Inner Width, Center Lock, 12x100mm (634 g) |
| Rear Wheel | DT Swiss ARC 1400 Dicut Carbon, 38mm Depth, 20mm Inner Width, Center Lock, 12x142mm (810 g) |
| Tires | Continental Grand Prix 5000 S TR, 700x28c (294 g) |
| Thru Axles | DT Swiss Thru Axles (12x100mm Front w/ lever / 12x142mm Rear w/o lever) |
| Saddle & Post | Selle Italia SLR Advan Saddle (130mm, 190 g) & Canyon SP0094 CF Carbon Seatpost (10mm setback, 118 g) |
Included Accessories
- Canyon EP2352-01 Saddle Clamp (for 7×7 mm steel rails)
