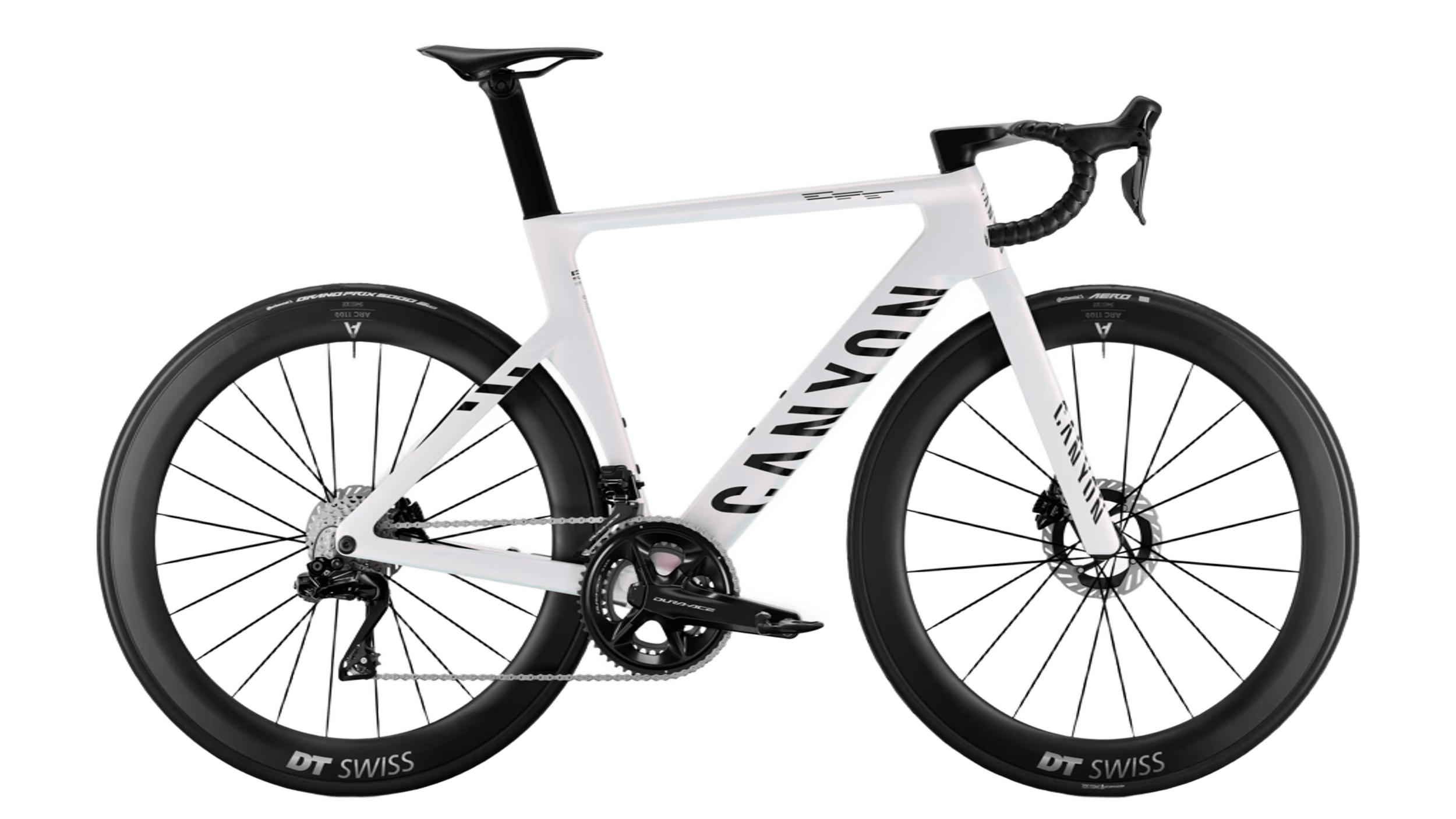

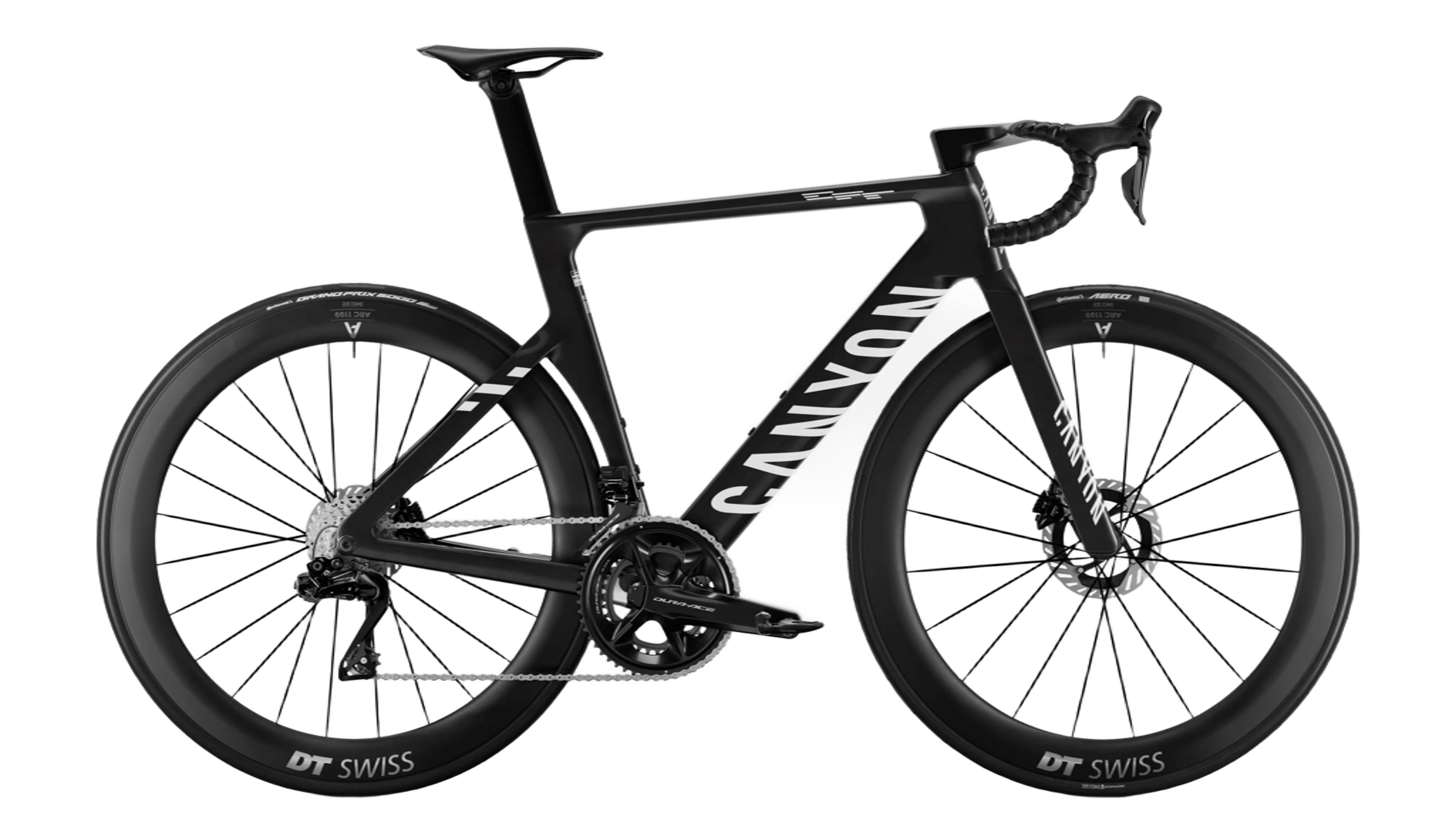

Canyon Aeroad CFR – Shimano Dura-Ace Di2 & Power Meter
The ultimate high-performance race machine, the Canyon Aeroad CFR (Canyon Factory Racing) features an ultralight 990g carbon frame built with pro-tier Shimano Dura-Ace Di2 12-speed electronic shifting, an integrated Dura-Ace power meter (165mm), premium DT Swiss ARC 1100 DICUT carbon wheels, and top-spec finishing components.
Key Specifications & Frameset
| Frame | Canyon Aeroad CFR, Carbon (990 g), 12x142mm thru-axle, 32mm tire clearance, removable derailleur hanger |
| Fork | Canyon FK0137 CF Disc, Carbon (401 g), 12x100mm thru-axle, 1 1/8″ steerer, 35mm tire clearance |
| Cockpit | CP0048 PACE T-Bar Aero Carbon Cockpit (224 g) with 50mm width & 20mm height adjustment (12 distinct positions) |
| Bar Tape | Lizard Skins DSP V2 1.8mm (Black) |
Drivetrain & Brakes
| Drivetrain | Shimano Dura-Ace Di2 R9250, 2×12-Speed Electronic Wireless |
| Shifters / Levers | Shimano Dura-Ace Di2 ST-R9270 / BR-R9270 Hydraulic Disc |
| Crankset | Shimano Dura-Ace Di2 Crankset with Integrated Power Meter (165mm cranks) |
| Cassette | Shimano Dura-Ace CS-R9200, 11-30, 12-Speed |
| Chain & BB | Shimano XTR 12s & Shimano Pressfit BB92 (PF 86.5) |
| Brake Rotors | Shimano Dura-Ace RT-CL900 Center Lock (160mm Front / 140mm Rear) |
| Battery | Shimano BT-DN300 Di2 Battery |
Wheels & Components
| Front Wheel | DT Swiss ARC 1100 DICUT db 55 Carbon, 55mm Depth, 22mm Inner Width, Center Lock, 12x100mm (687 g) |
| Rear Wheel | DT Swiss ARC 1100 DICUT db 55 Carbon, 55mm Depth, 22mm Inner Width, Shimano Freehub, Center Lock, 12x142mm (793 g) |
| Tires | Continental Aero 111 26mm (Front) / Continental Grand Prix 5000 S TR 28mm (Rear) |
| Thru Axles | DT Swiss Thru Axles (12x100mm Front w/ lever / 12x142mm Rear) |
| Saddle & Post | Selle Italia SLR Carbon Saddle (130mm, 149 g) & SP0105 Aero Carbon Seatpost (10mm setback, 157 g) |
Included Accessories
- EP2351-01 Saddle Clamp (for 7×9 mm carbon rails)
- Canyon Organza Bag & Assembly Paste
- Quick Start Guide & Accessories Set
